Ring spinning tubes

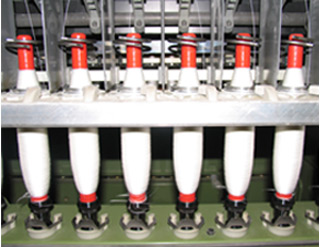

INTERCIMAR offers a wide range of plastic bobbins for each model of ring spinners available in the market. We manufacture our Ring spinning tubes with different types of plastic, which are suitable for working at the highest spindle speeds according to the technical specifications of the various spinning frame manufacturers.

The material from which the bobbin is made is determined by each application, the properties of product that the customer manufactures, if it needs to be vaporised or not, and also according to the manufacturer's recommendations, in order to ensure that the bobbins can last for a long time.

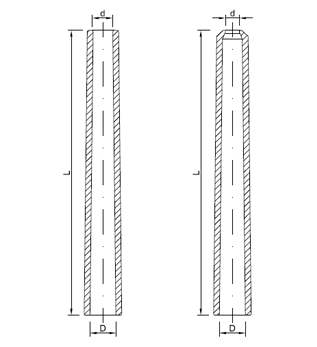

We can manufacture the bobbins with a metal ring on the base and on the end if necessary and the length varies from 200 mm. to 500 mm. Our Ring spinning tubes have various surface finishes according to each application. The following tables lay out the technical specifications of our most popular range of Ring spinning tubes classified by their different conicity:

1:38 Conicity

L	D	d	D	d	D	d
200	20.26	15.00	18.76	13.50
220	22.28	16.50	20.28	14.50	18.78	13.00
230	22.30	16.25	20.30	14.25	18.80	12.75
240	24.31	18.00	22.31	16.00	20.31	14.00
250	24.32	17.75	22.32	15.75	20.32	13.75
260	27.34	20.50	24.34	17.50	22.34	15.50
270	27.35	20.25	24.35	17.25	22.35	15.25
280	30.36	23.00	27.36	20.00	24.36	17.00-10.00
290	30.37	22.75	27.37	19.75	24.37	16.75
300	33.39	25.50	30.39	22.50	27.39	19.50

1:64 Conicity

L	D	d	D	d	D	d
180	18	15.19
190	18	15.03
200	18	14.88	20	16.88
210	18	14.72 / 10.00	20	16.72 / 10.00
220	18	14.56	20	16.56 / 11.50
230			20	16.41	22	18.40
240			20	16.25	22	18.25
250			20	16.09	22	18.09
260					22	14.00
